Description

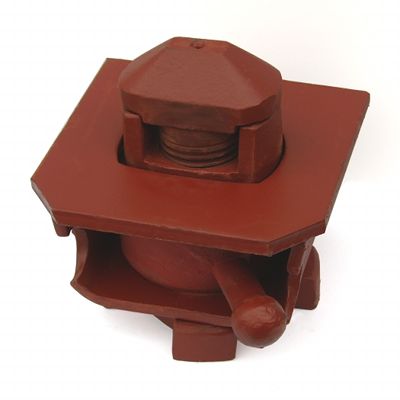

A retractable screwdown twist lock designed to secure ISO and special containers to rigids, skeletal and platform vehicles and chassis.

The securing head retracts below deck level to allow non-containerised loads to be carried.

The screwdown facility ensures safety for loads during transportation and the nut can be secured for extra safety.

Meets AAR requirements and is dimensionally compatible with ISO corner castings.

Twistlock Type

• Retractable
• Screwdown

Purpose

Designed to secure ISO containers and special containers to rigids, skeletal and platform vehicles and chassis.

Features and Benefits

• Allows non-containerised loads to be carried.
• Can be engaged and lowered with the container in place.
• Twistlock stem locks in both locked and unlocked positions.
• Screwdown facility ensures safety for loads during transportation.
• Simple one hand operation.
• Fitted with large diameter nut for ease of operation.
• Nut can be secured with latch for extra safety.
• Meets AAR requirements.
• Dimensionally compatible with ISO corner castings and aperture plates.

Finish

Red Oxide Primer.

Weight

10.25 kg

Part Number

S2830
