Door Gear Set with Forged Lever
| Part Number | Description | |
|---|---|---|
| S2902 | Keeper, zinc plated steel Weight: 0.400kg |
 |
| S2901 | Cam, zinc plated steel Weight: 0.620kg |
 |
| Large cam guide, zinc plated steel with plastic bush Weight: 0.460kg View parts |
 |
|
| S2909 | Anti-Rack Ring Weight: 0.064kg |
 |
| Small tube guide, zinc plated steel with plastic bush Weight: 0.170kg View parts |
 |
|
| Complete forged handle, zinc plated steel Weight: 1.374kg View parts |
 |
|
| Large cam guide, zinc plated steel with plastic bush Weight: 0.460kg View parts |
 |
|
| S2903 | Cam, zinc plated steel Weight: 0.620kg |
 |
| S2904 | Keeper, zinc plated steel Weight: 0.400kg |
 |
| S2921 | Complete locking gear, zinc plated steel, for tube 26 x 34 Weight: 4.900kg |
|
Note: Upper cam becomes lower cam on left locking gear and vice versa.
Component Parts List
| Description | Part Description | Part Number |
|---|---|---|
| Large Cam Guide - Complete Comprised of: View image |
Cam Guide Outer | S2975 |
| Cam Guide Inner | S2907 | |
| Plastic Bushes | S2955 | |
| Small Bar Guide - Complete Comprised of: View image |
Bar Guide Outer | S2954 |
| Bar Guide Inner | S2934 | |
| Plastic Bushes | S2955 | |

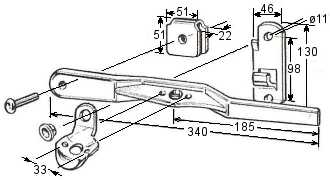

| Forged Lever Kit - Complete Comprised of: View image Pressed handle also available |
Handle Hub | S2912 |
| Bush | S2914 | |
| Retainer Catch | S2915 | |
| Retainer Plate | S2916 | |
| Forged Lever | S2917 | |
| Lever Rivet | S2918 |
